How Do I Choose the Right Type of CCTV Camera for My Needs?

Looking for a CCTV camera but not sure where to start?

Whether you’re trying to keep an eye on your home, protect your business, or simply want some extra peace of mind, choosing the right security camera shouldn’t give you a headache.

We know you have questions: Do you need high-definition? Wireless or wired? Something that works in the dark? And what’s with all these different shapes?

Let’s cut through the confusion together.

In this guide, we’ll walk you through everything you need to know to pick the perfect CCTV camera for your situation. We’ll also take a look at what different cameras do best, which features really matter, and how to get solid security without breaking the bank.

Understanding Your Security Needs

Before you get into camera specifications, take a moment to assess what you’re trying to achieve with your CCTV system. Ask yourself:

• What are you trying to protect? A small apartment, a large home, a retail shop, or an industrial facility?
• What areas need coverage? Entrances, perimeters, indoor spaces, or specific high-value areas?
• What lighting conditions exist in these areas? Are they well-lit, dimly lit, or completely dark at night?
• What level of detail do you need? Simple motion detection, facial recognition, or licence plate reading?
• What’s your budget? Both for initial installation and ongoing maintenance.

Having clear answers to these questions will make the selection process much more straightforward.

Require CCTV installation in Carlton, Carnegie, or Hillside? Welcome to Hypower Security, your one-stop solution for all your security needs. With our state-of-the-art alarm systems, security cameras, and professional CCTV installation services, we’ve got your back when it comes to protecting what matters most – your home, your business, and your peace of mind.

Types of CCTV Cameras

Let’s explore the main types of CCTV cameras available and what each excels at:

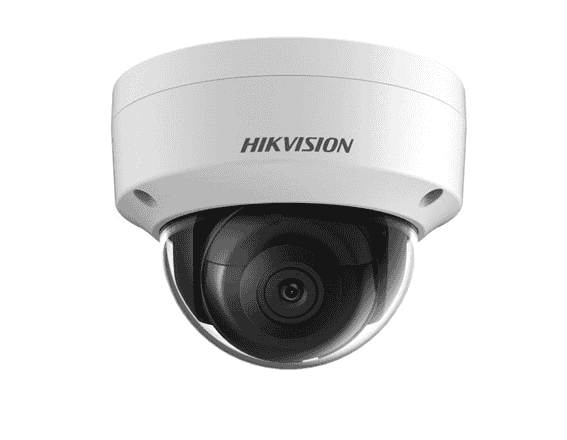

Dome Cameras

Best for: Indoor use, retail environments, offices, and homes

Dome cameras get their name from their distinctive dome-shaped housing. They’re mounted on ceilings or walls and are less obtrusive than other camera types.

Pros:

• Discreet appearance blends with most décors
• Difficult for intruders to tell which direction the camera is pointing
• Vandal-resistant designs available
• Good for indoor environments

Cons:

• Limited range compared to some other options
• May have restricted viewing angles
• Not always ideal for outdoor applications unless specifically designed for it

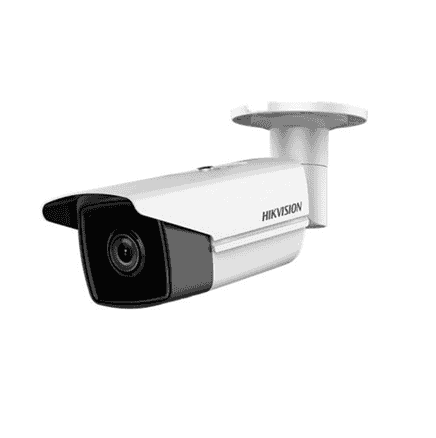

Bullet Cameras

Best for: Outdoor surveillance, perimeter monitoring, long-distance viewing

These cylindrical cameras are highly visible and often serve as a deterrent just by their presence.

Pros:

• Long-range capabilities
• Highly visible (acts as a deterrent)
• Weather-resistant models widely available
• Easy to install and position

Cons:

• More susceptible to vandalism due to their protruding design
• Can be more obtrusive in residential settings

Need CCTV installation for your home in Templestowe, Footscray, Bentleigh? Are you looking for the ultimate protection for your home or business? Look no further than Hypower Security, your trusted partner for all things security. With our state-of-the-art security cameras and alarm systems, we’ve got you covered 24/7.

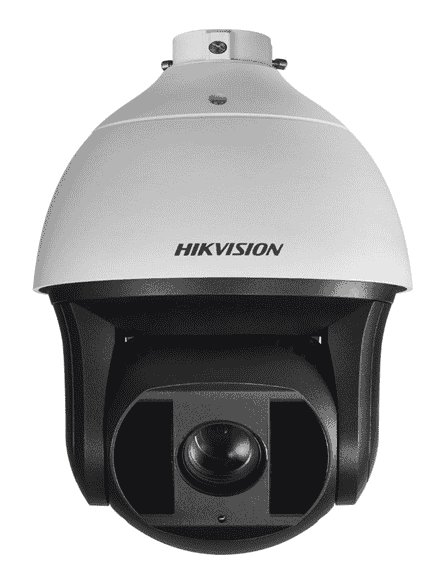

PTZ Cameras (Pan-Tilt-Zoom)

Best for: Large areas requiring active monitoring, car parks, warehouses

These versatile cameras can be remotely controlled to move horizontally (pan), vertically (tilt), and zoom in for detailed views.

Pros:

• One PTZ camera can potentially replace multiple fixed cameras
• Can track moving subjects
• Provides flexibility in surveillance coverage
• Great for active monitoring situations

Cons:

• More expensive than fixed cameras
• May miss incidents when pointed in another direction
• Requires more maintenance due to moving parts

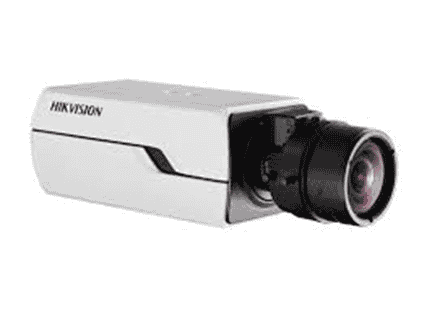

Box Cameras

Best for: Professional applications requiring customisation

The traditional CCTV camera design, box cameras allow you to select and change lenses based on your specific requirements.

Pros:

• Highly customisable (interchangeable lenses)
• Visible deterrent
• Professional-grade image quality

Cons:

• Require separate housing for outdoor use
• More complicated to set up
• Bulkier appearance

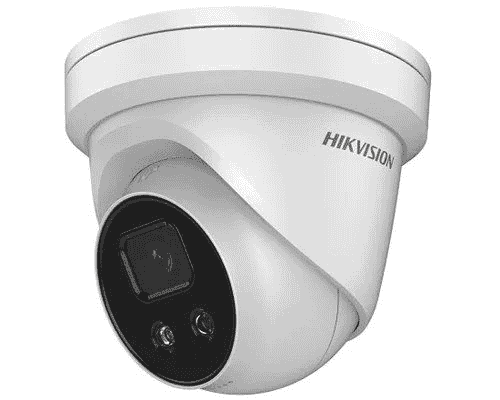

Turret/Eyeball Cameras

Best for: Versatile indoor/outdoor use with less visible profile than bullet cameras

A hybrid between dome and bullet cameras, offering flexibility with a less intrusive design.

Pros:

• No reflective dome cover, reducing glare issues
• Easier to position than dome cameras
• Less conspicuous than bullet cameras
• Often includes infrared capabilities

Cons:

• Not as vandal-resistant as dome cameras
• Mid-range in most capabilities

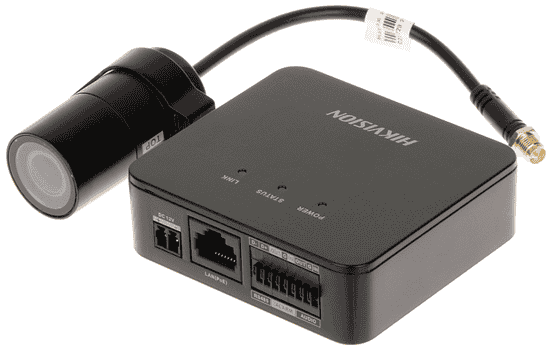

Covert/Hidden Cameras

Best for: Situations requiring discreet monitoring

These cameras are disguised as other objects or installed in inconspicuous locations.

Pros:

• Nearly invisible surveillance
• Can capture unsuspecting intruders
• Good for confirming suspected theft

Cons:

• Often have limited features
• May raise privacy concerns
• Usually cover smaller areas

Key Camera Features to Consider

Once you’ve determined the type of camera that suits your needs, consider these essential features:

Resolution

Camera resolution significantly impacts image quality and detail level. Higher resolution means clearer images but also requires more storage space.

• 720p (1 megapixel): Basic entry-level resolution, suitable for general surveillance
• 1080p (2 megapixel): Standard full HD, good for most residential and small business needs
• 4K (8 megapixel): Excellent for capturing fine details like facial features or licence plates

For facial identification, you typically need at least 1080p resolution. For licence plate recognition, consider 4K cameras or specialised LPR (Licence Plate Recognition) cameras.

Night Vision Capabilities

Most security incidents occur at night, making night vision capability crucial for any security camera system.

• Infrared (IR) LEDs: Most common night vision technology, providing black and white footage in darkness
• Low-light cameras: Can capture colour footage in dim conditions
• Starlight technology: Advanced low-light performance, maintaining colour even in minimal lighting
• IR range: Check how far the camera can see in darkness (typically 10-50 metres)

Remember that IR illumination isn’t visible to the naked eye but appears as a subtle red glow on the camera itself.

Weather and Vandal Resistance

For outdoor cameras, weather resistance is non-negotiable. Look for:

• IP ratings: IP65, IP66, or IP67 for outdoor use (the higher the number, the better the protection)
• IK ratings: For vandal resistance (IK10 being the highest)
• Operating temperature range: Especially important for extreme Australian conditions
• Housing materials: Metal housings typically offer better protection than plastic

Connectivity Options

How your camera connects to your monitoring and recording system matters:

• Wired (Ethernet/PoE): Most reliable connection with consistent power and data
• Wireless (Wi-Fi): Easier installation but potentially less reliable and require separate power
• Cellular: For remote locations without reliable internet or power

Power Requirements

Consider how your cameras will be powered:

• Power over Ethernet (PoE): Powers the camera through the same cable that carries data
• Mains power: Traditional electrical connection
• Battery-powered: Limited operation time but flexible placement
• Solar options: For remote locations without easy access to power

Analog vs IP Cameras: Which Technology is Right for You?

The CCTV industry has two primary technologies:

Analog Cameras

Pros:

• More affordable initial investment
• Simpler technology that’s easier to understand
• Can utilise existing coaxial cable infrastructure

Cons:

• Lower resolution (typically maxing out at 1080p)
• Less flexible features
• Limited expansion capabilities
• Requires separate power cables

IP (Network) Cameras

Pros:

• Higher resolution (up to 4K and beyond)
• Advanced features like video analytics
• Power and data over one cable (PoE)
• More flexible installation options
• Better integration with other systems

Cons:

• Higher initial cost
• May require network infrastructure upgrades
• More complex to set up and maintain
• Higher bandwidth and storage requirements

For new installations, IP cameras generally offer better long-term value and capabilities, but analog systems still have their place, especially when working with existing infrastructure or tight budgets.

Storage and Monitoring Considerations

Even the best camera is only as good as the system that stores and allows you to access the footage.

Storage Options

• DVR (Digital Video Recorder): Used with analog cameras
• NVR (Network Video Recorder): Used with IP cameras
• Cloud storage: No on-site recorder needed but requires good internet connection
• Hybrid systems: Can work with both analog and IP cameras

Consider how long you need to keep footage and at what quality. Higher resolution cameras will fill storage space much faster.

Remote Viewing

Most modern systems offer mobile apps for remote viewing. Consider:

• Ease of use
• Multi-user access
• Notification capabilities
• Export and sharing features

Budgeting for Your CCTV System

When planning your budget, remember to factor in:

• Camera costs: Higher quality and more features generally mean higher prices
• Installation costs: Professional installation ensures optimal placement and setup
• Storage costs: Higher capacity and redundancy increase costs
• Ongoing costs: Maintenance, cloud storage fees, potential network upgrades

As a rough guide:

• Basic home systems: $500-$1,500
• Small business systems: $1,500-$5,000
• Comprehensive business systems: $5,000+

Remember that cutting corners on quality usually leads to poor performance and earlier replacement, costing more in the long run.

Are you looking for CCTV installation in Oakleigh, Caulfield, or Moorabbin? We offer a 2-year parts and workmanship guarantee and a complete manufacturer’s warranty on our security systems.

Payment plans available

Privacy and Legal Considerations in Australia

In Australia, there are important legal considerations when installing CCTV:

• You generally cannot point cameras directly at neighbours’ properties
• Workplace surveillance laws vary by state but typically require notifying employees
• Signs indicating CCTV in operation are required in public or commercial spaces
• Audio recording has additional legal restrictions in most states
• You must have a legitimate purpose for surveillance

Consult with a security professional familiar with local regulations before installation.

Making Your Final Decision

To summarise the selection process:

1. Identify your security goals and problem areas
2. Determine camera types most suitable for each location
3. Choose resolution based on detail level needed
4. Select additional features like night vision based on environment
5. Decide on technology (IP vs analog) based on needs and budget
6. Plan your storage requirements
7. Consider installation options (DIY vs professional)

Remember that a balanced system with appropriate camera types for each area will provide better security than simply choosing the most expensive option throughout.
